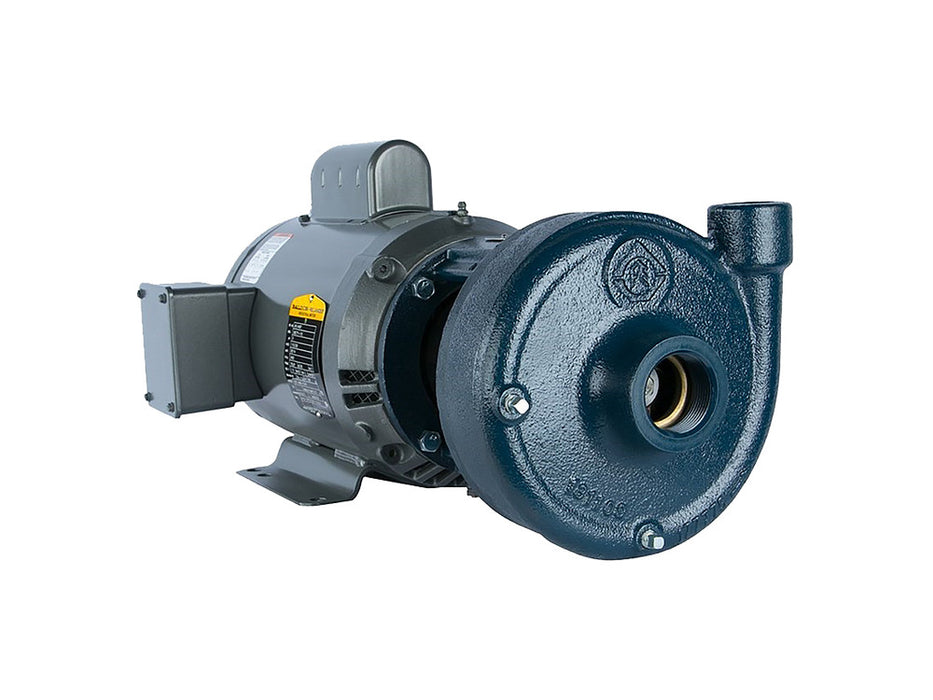

Franklin Electric D-Series Close-Coupled Centrifugal Pump – DB2DC2 (93161150)

The Franklin Electric DB2DC2 10HP Close-Coupled Centrifugal Pump is built for high-performance water movement across agricultural, industrial, and commercial applications. Featuring durable cast iron construction and a heavy-duty silicon brass impeller, this pump delivers reliable, efficient operation for even the most demanding jobs.

• Powerful 10 HP motor runs at 3600 RPM for high flow rates and consistent pressure output

• Heavy-duty cast iron construction provides long-lasting durability and withstands tough job site conditions

• Silicon brass closed impeller offers excellent corrosion resistance and hydraulic performance

• High temperature tolerance, handling fluid temperatures up to 212°F for a wide range of applications

• Compact, space-saving close-coupled design simplifies installation and reduces footprint

• Model: DB2DC2 (10FPDB2-S)

• Part Number: 93161150

• Horsepower: 10 HP

• Voltage: 230V (Single Phase)

• Amps: 42 A

• Speed: 3600 RPM

• Impeller Diameter: 6.44 in

• Suction Size: 3" FNPT

• Discharge Size: 2" FNPT

• Maximum Fluid Temp: 212°F

• Motor Enclosure: Open Drip Proof (ODP)

• Dimensions (L x W x H): 24.61" x 25.56" x 10"

• Weight: 171 lbs

• Warranty: 12 months limited warranty

• Agricultural irrigation systems

• Commercial and industrial fluid transfer

• HVAC water circulation

• Municipal and commercial water supply
